Hengwang brand miniature cranes are specially designed and manufactured for working in indoor or outdoor low-passage confined areas.

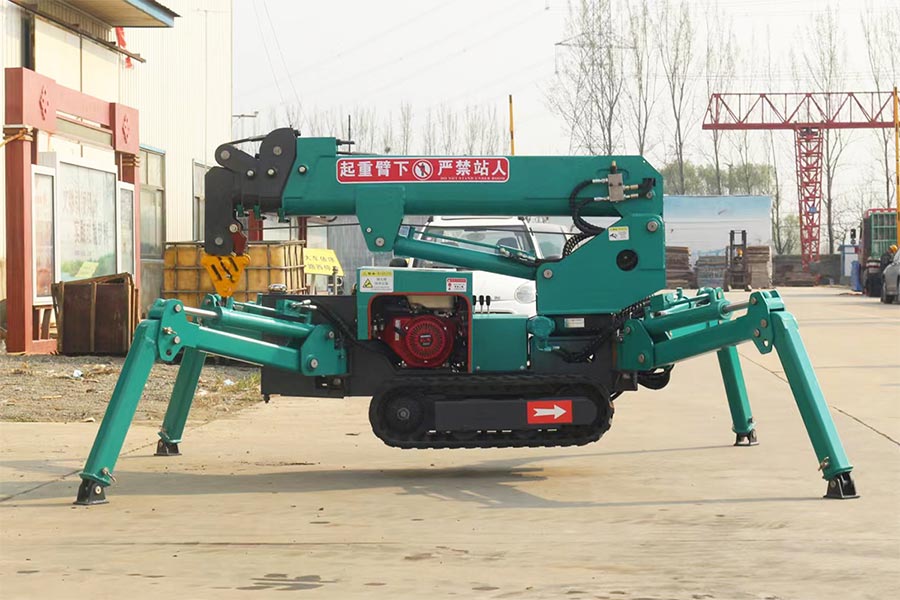

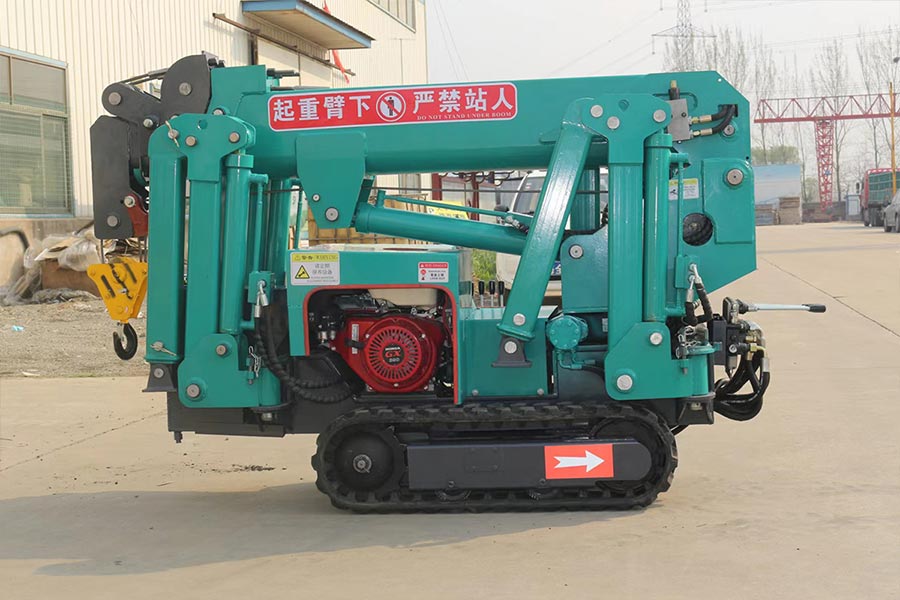

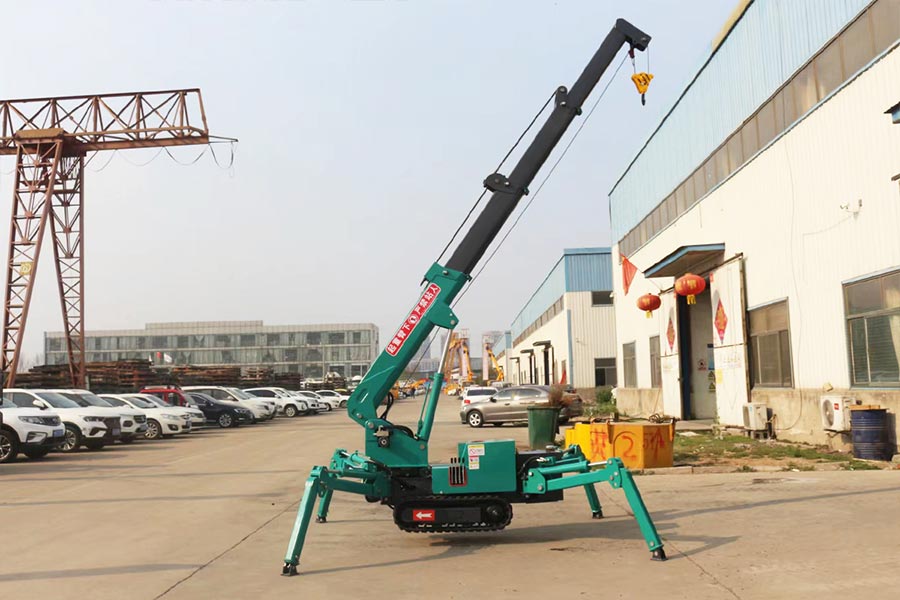

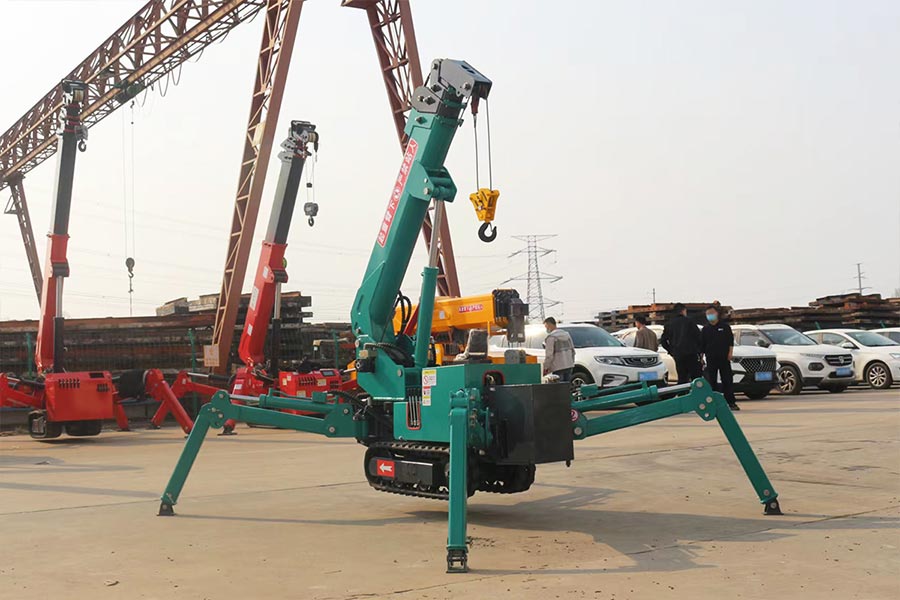

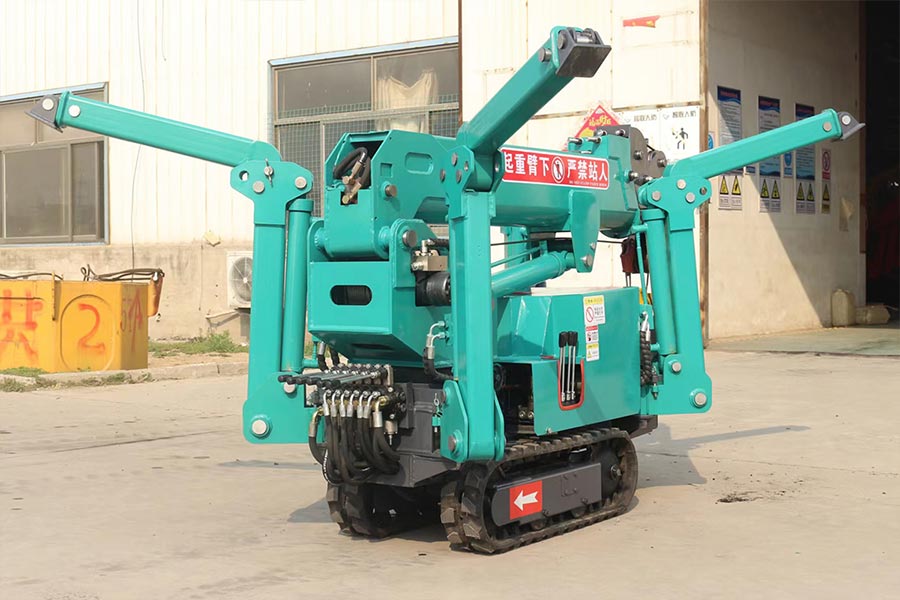

It was mounted on a double-track chassis with "spider-type" outriggers. Hengwang miniature cranes are compact and easy to move, and are used in places where traditional lifting equipment or truck-mounted cranes cannot be used due to their size.
| Model | HW120 |
| Specification | 1.2t |
| Dimension | L2095mm*W600mm*H1450mm |
| Machine weight | 1230kg |
| Max working radius | 5m（0.3ton） |
| Max lifting height | 5.8m(0.8ton) |
| Standard configuration | Proportional Valve, Petrol engine, Searcher hook, Storage battery, Black rubber track, EMO switch, Three color lamp, Remote control lamp, Luffing balance valve, Telescopic balance valve, Hook anti-decoupling device, Slewing brake, Winch brake, Outrigger off the ground alarm and automatic stop device, Walking/Outrigger/Boom three-mode interlock system, Extra two sets of filters |
Quote now for the best price.
