1. Hydraulic system: the application of new electronic control commutation technology makes the pumping work more reliable and the failure rate of hydraulic system lower; Equipped with special valve of hydraulic control system, large through-flow, low energy consumption and small impact, extending service life.
2. Power system: Concrete pump adopts Siomens brand motor, a well-known brand at home and abroad. And diesel concrete pump adopts tianjin levo and yuchai brands with low energy consumption and high efficiency.
3. heat dissipation system: the use of air cooling or water cooling double cooling system,can guarantee the stability of equipment operation in high temperature,cold and other harsh climate conditions.

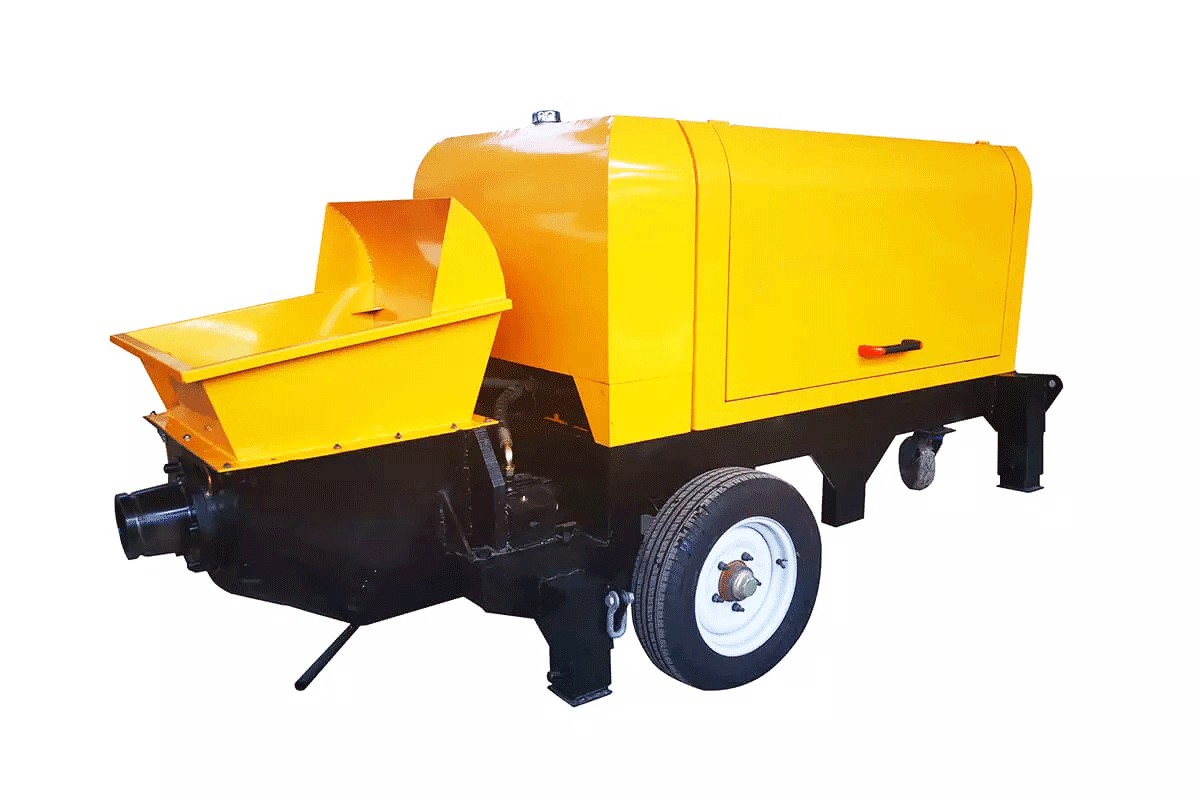

Model | HW20-37 |
Power | 37kw |
Voltage | 380V |
Vertical delivery distance | 120m |
Horizontal delivery distance | 250m |
Output | 30m3/h |
Max.Aggregate size | 20mm |
Outlet diameter | 140mm |
Cylinder stroke | 1100mm |
Pipe diameter | 100mm |
Dimension | 3500*1700*1800mm |
Weight | 1500kg |
