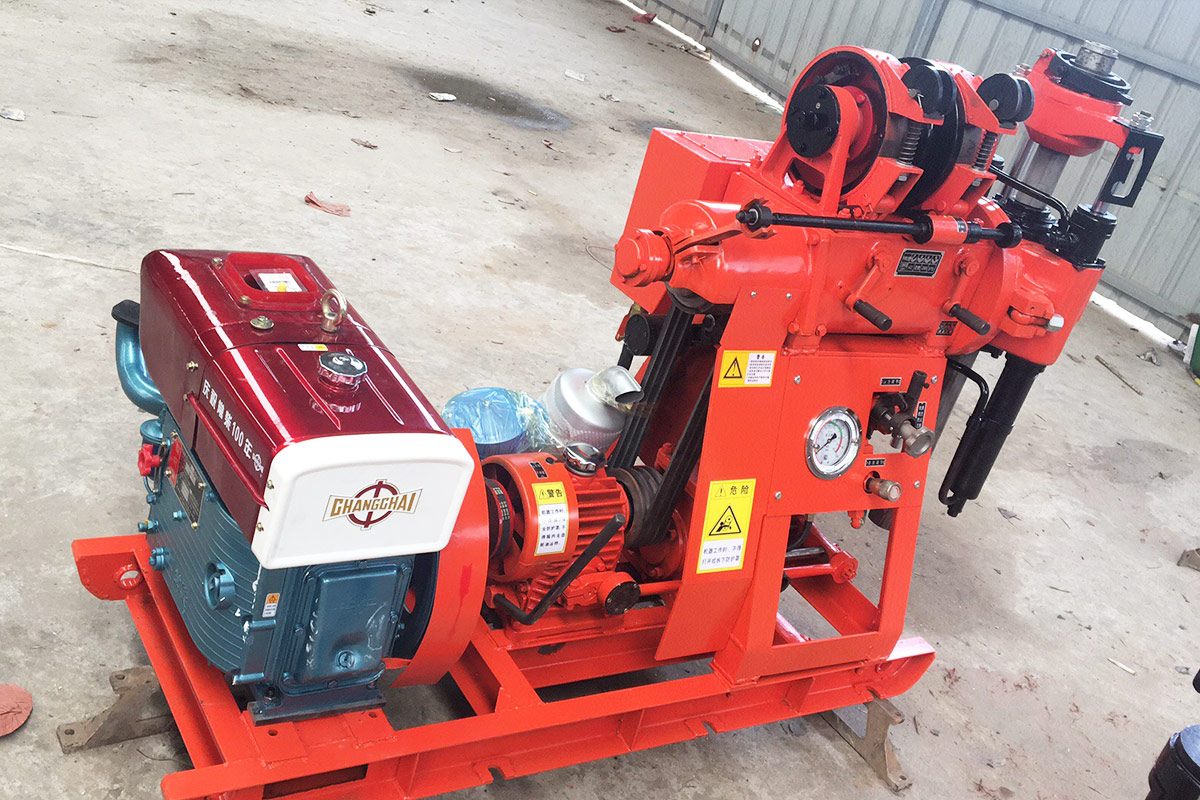

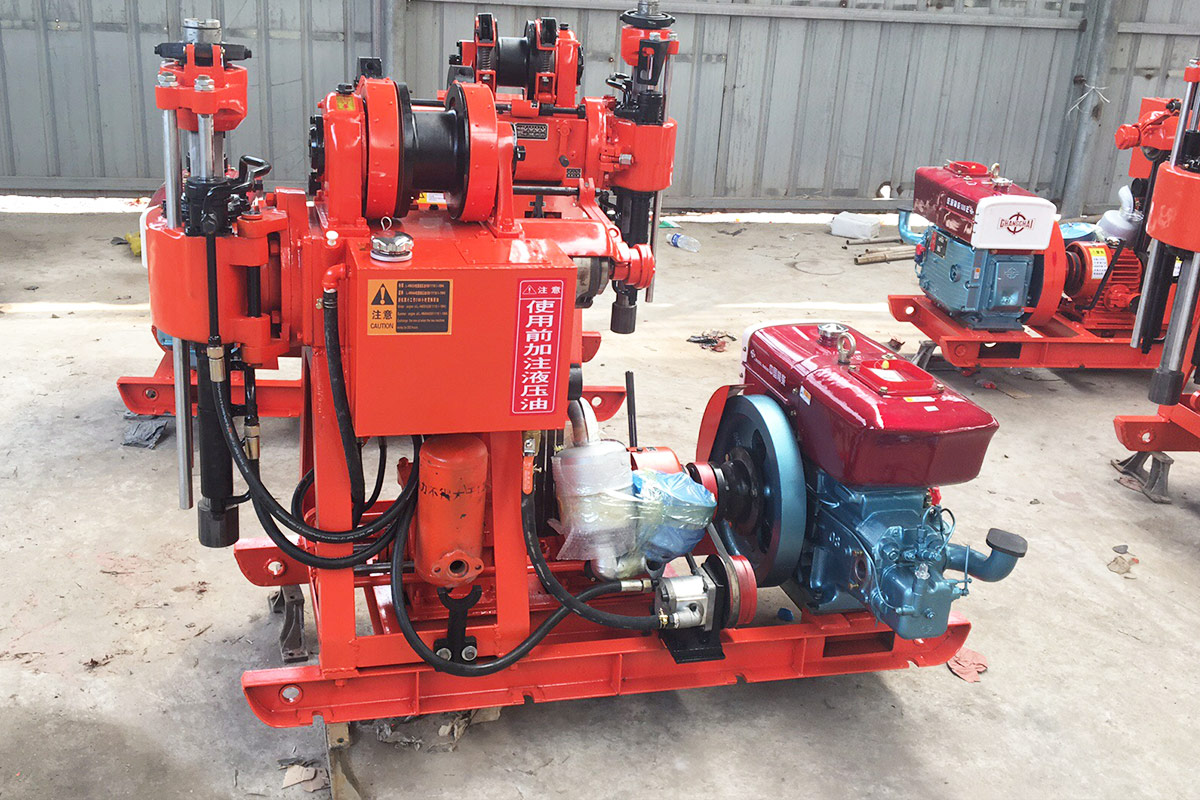

Feature:
1. Equipped with hydraulic automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.
2. The ball clamping mechanism is used instead of the chuck, which can realize non-stop, convenient operation, safety and reliability.
3. The hoist is equipped with a frame to form a double-sided support star structure, which can withstand strong impacts.
Model | XY-1A | ||
Drilling depth | 180m | Open hole dia | φ75-150mm |
End hole dia | 75-46mm | Main rod | 53/59*4200mm |
Drill rod dia | φ50mm φ42 | Drill angle | 90°～75° |
Supporting power | 13.2Kw/2200/r/min | Weight/size | 920kg/2400*950*1400 |
Drill mast | |||
Rated load | 2t | Effective height | 6m |
Tower leg specifications | 73mm | ||
Winch parameters | |||
Single rope lifting force | 9.6kN | Single rope lifting speed | 0.3. 0.8. 1.29. 1.96. 2.23m/s |
Roll diameter | φ140mm | Rope diameter | 27m |
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
Submit the form to get the latest parameters and quotations.
