| Model | SPJ300T | ||
| Drill diameter | Φ500mm-1500mm | Drill depth | 300m |
| Maximum output torque | 18KN/m | Driver drill rod | 108mm×108mm×4000mm |
| Drill rod | φ89mm×4200mm, φ127×φ108×4200mm | main winch lift | 30KN |
| Auxiliary winch | 20KN | Spindle inner diameter | 500mm |
| Spindle revolving speed | 40, 70, 128r/min | Drill Mast vertical height | 8.6m |
| Weight | 6.5t | Dimension | 8400mm×2050mm×8000mm |

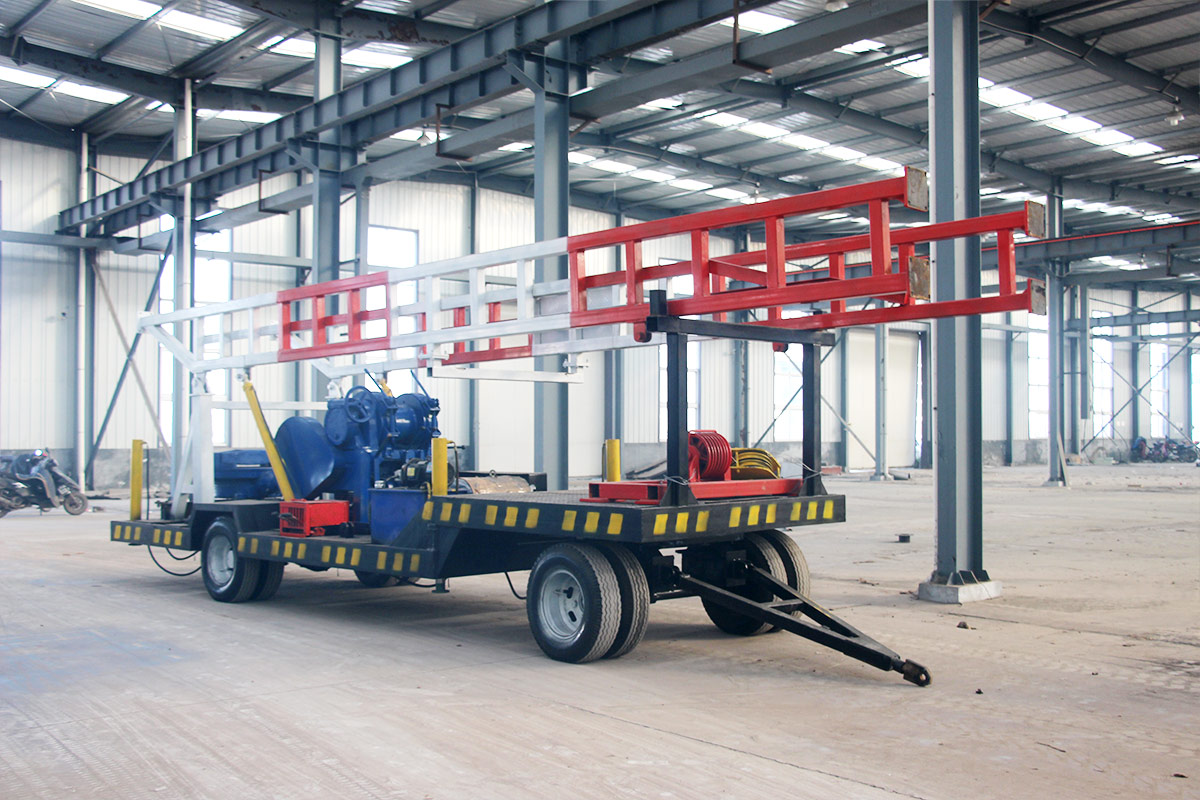

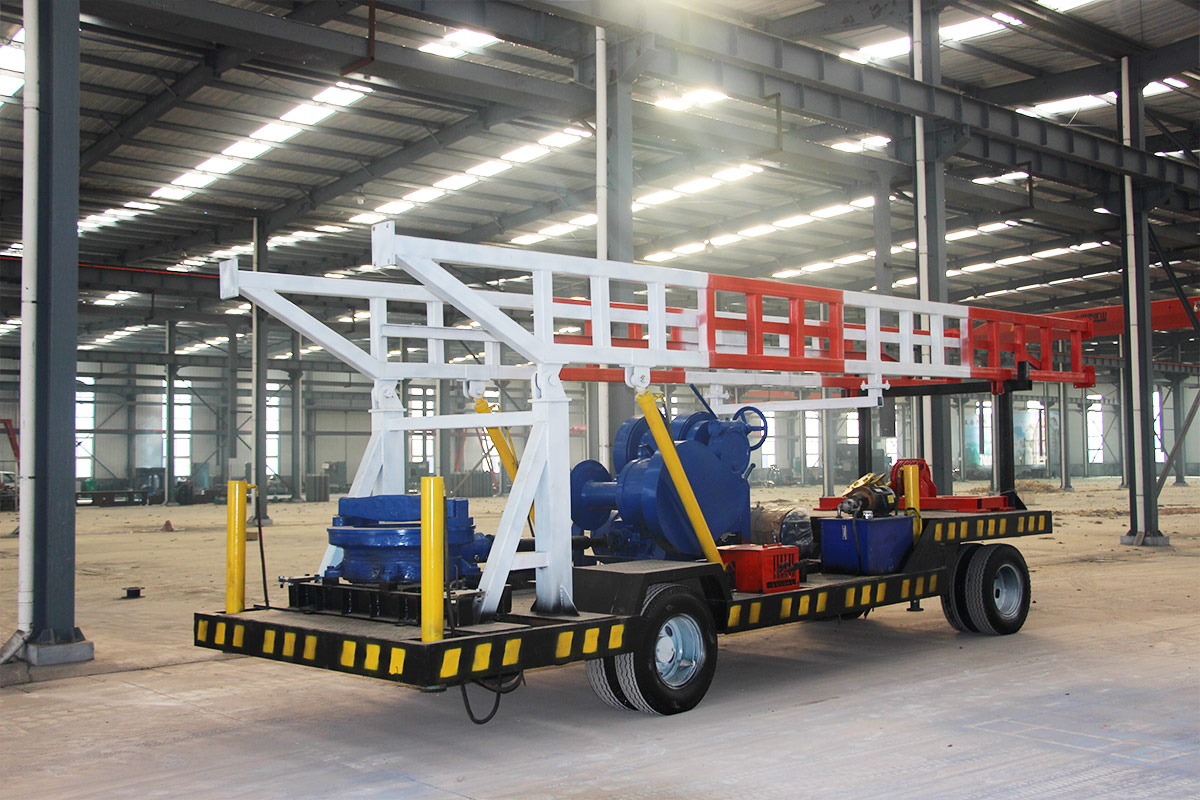

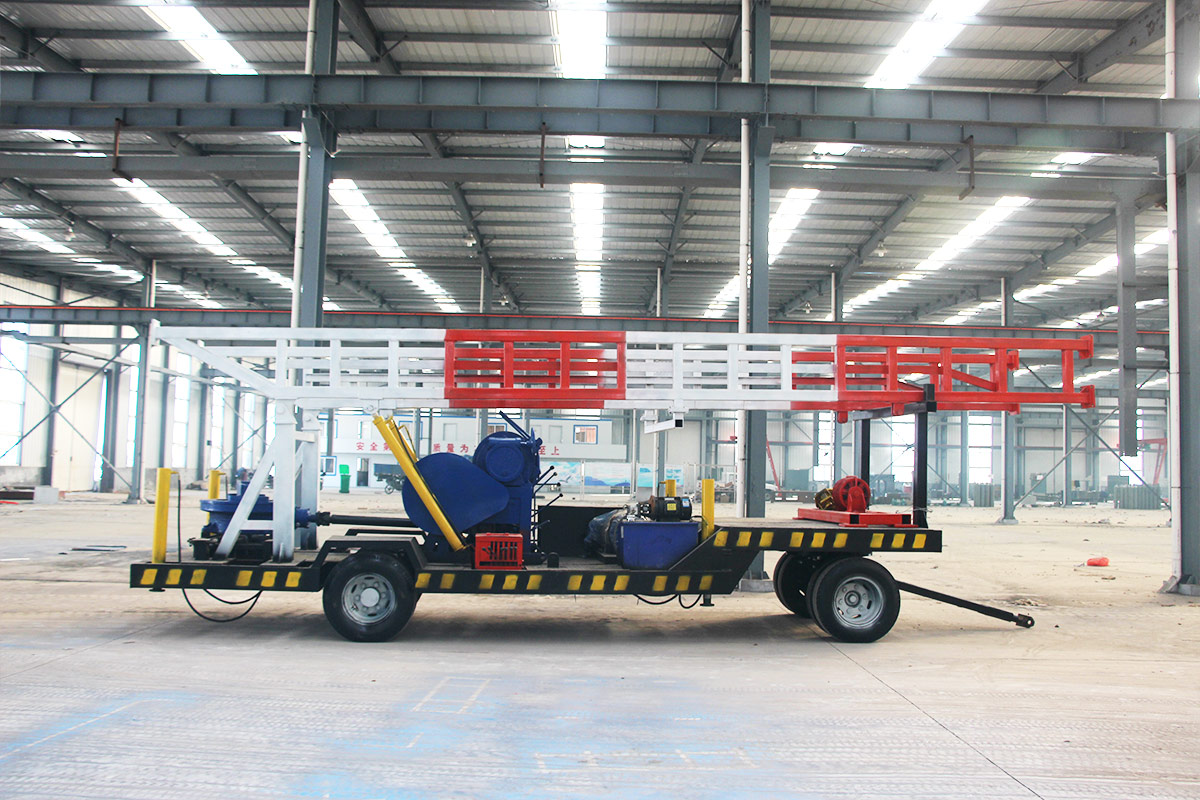

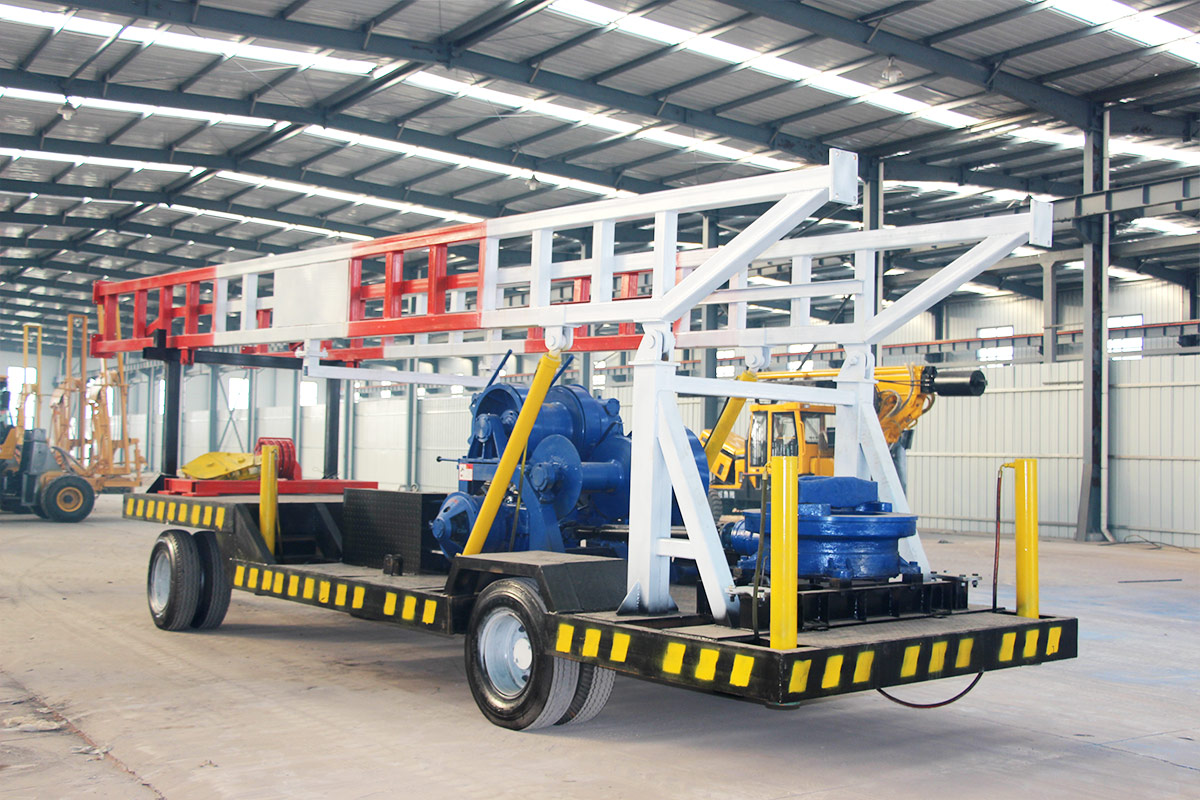

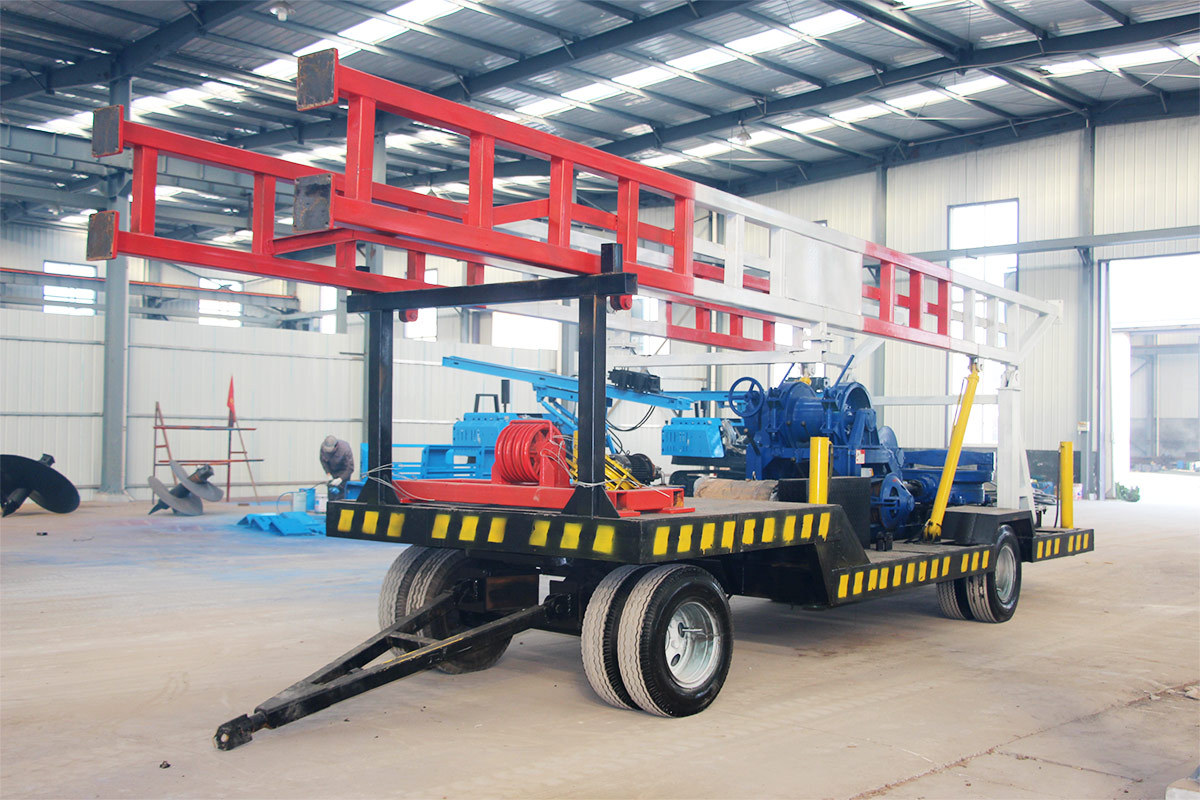

The drill machine is bulk type rotary machine, Main usage use for fine particle geology, and normal is soft rock geology.
Main Application
1.Exploration geology
2.For agricultural irrigation, industrial water
3.Underground Tunnel. Bridge, engineering drill and so on.
