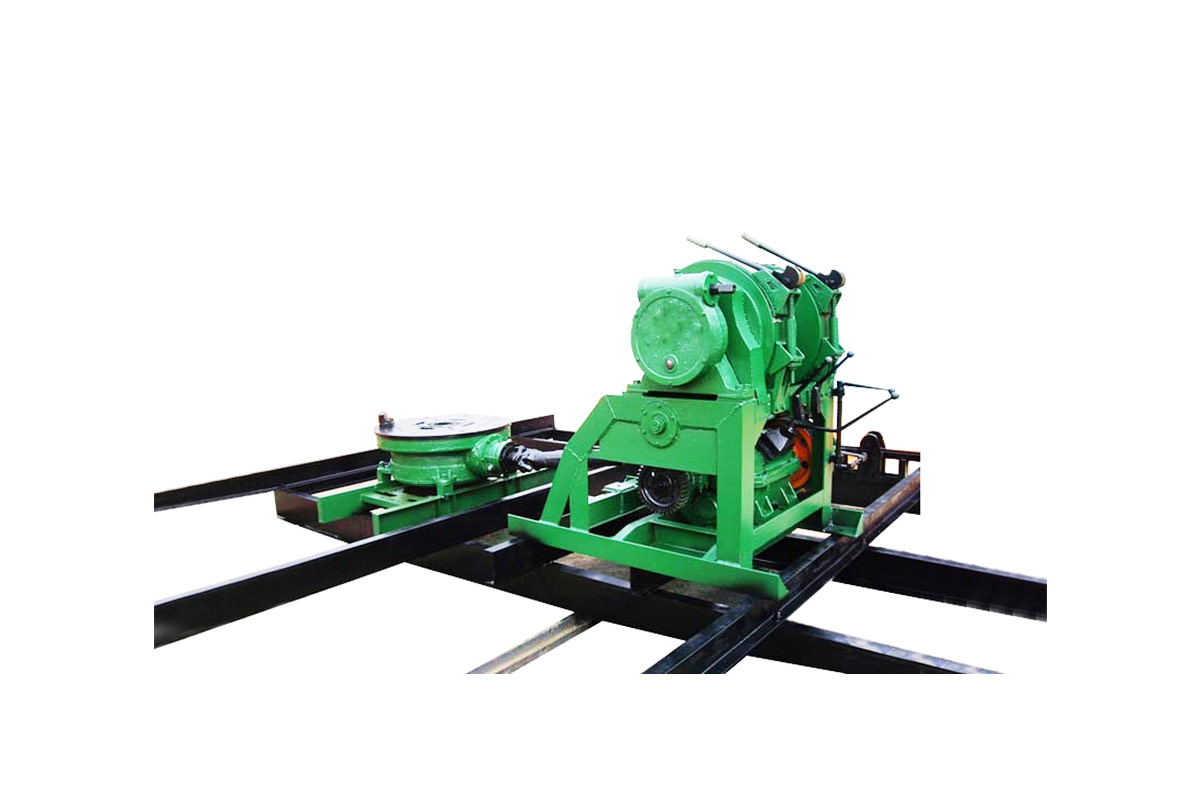

SPJ (t/c) series water well drilling rigs are the products of our company's early production for water drilling and other hydraulic engineering.
At present, the products have been developed into drilling depths of 300 meters, 400 meters, and 600 meters, and can be formed in bulk according to user needs or truck-mounted multi-form series of well drilling rigs.
The rig adopts the rotary type, which is mainly suitable for hydrogeological exploration and other engineering holes.
The rig main unit, mud pump, diesel engine, etc. are all installed on a special semi-trailer chassis, which is convenient and quick to move.
| Model | SPJ-300 |
| Drill Diameter (mm) | Φ500mm-1500mm |
| Drill Depth | 300m |
| Maximum output torque (kn/m) | 18KN/m |
| Drive pipe (mm) | 08mm×108mm×4000mm |
| Drill pipe (mm) | φ89mm×4200mm, φ127×φ108×4200mm |
| main winch | 30KN |
| auxiliary winch | 20KN |
